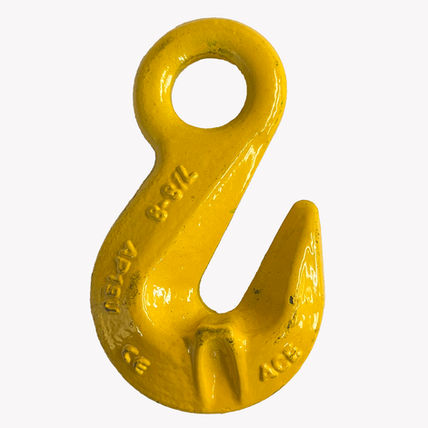

Grade 8 Eye Type Grab Hooks - YASEGH
Material
Grade 8 Alloy Steel
Finish
Yellow Painted
Standard
BS-EN 1677-1
Factor of Safety
4:1
Dimensions
Product Code | Size Chain (mm) | A (mm) | P (mm) | G (mm) | K (mm) | F (mm) | WLL (Tonne) | Weight (Kgs) |
|---|---|---|---|---|---|---|---|---|
YASEGH07 | 7-8 | 17 | 10 | 9 | 60 | 30 | 2.00 | 0.3kg |
YASEGH10 | 10 | 20 | 13 | 13 | 84 | 41 | 3.15 | 0.76kg |
YASEGH13 | 13 | 25 | 16 | 15 | 102 | 52 | 5.30 | 1.37kg |
YASEGH20 | 18-20 | 37 | 23 | 23 | 132 | 98 | 12.50 | 4.27kg |
YASEGH16 | 16 | 30 | 18 | 20 | 114 | 57 | 8.00 | 2.2kg |
YASEGH22 | 22 | 42 | 24 | 26 | 157 | 110 | 15.00 | 6.84kg |
YASEGH26 | 26 | 41 | 29 | 32 | 187 | 130 | 21.20 | 10.38kg |
YASEGH32 | 32 | 55 | 34 | 42 | 220 | 130 | 31.50 | 18.77kg |
